Several problems (external display) with New Surface Pro 2

Discussion in 'Microsoft Surface Pro 2' started by spinez, Jan 1, 2014.

  1. spinez

    spinez New Member

    Joined:
    Jan 1, 2014
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    0
    Hey guys,

    I just bought a SP2 and am having some problems. It's primary use will be connected to my TV as a media center with the option of unplugging it and using it as a laptop away from home (4-5 times a week).

    So, I picked up a 128gb at BestBuy (MS Store was sold out). They were sold out of the mini DP->HDMI adapter. So, I went with a "Rocketfish" branded mini DP->HDMI adapter as well.

    Here's where the issues come in. I have the SP2 connected to my TV and the settings are set to only output to the TV (surface screen is off). I've actually tested these with duplicate mode as well and the same issues arise.

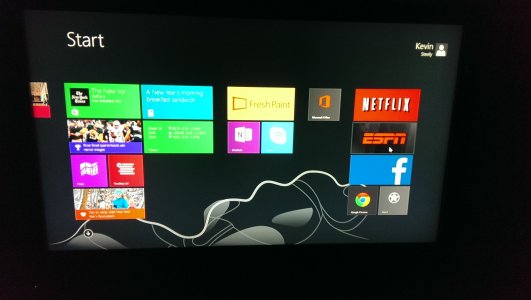

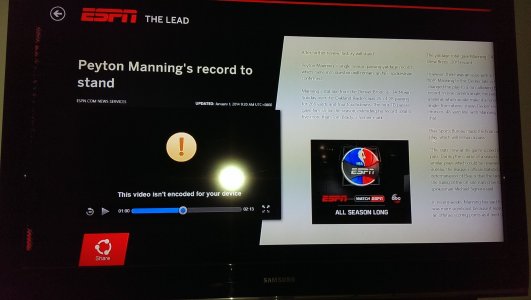

    When connected to the TV, it seems to work beautifully. However, there are screen artifacts on certain applications and always when viewing video on the device. I've attached a couple of screenshots. The main screen has no visible artificats. The ESPN app has a ton of red artifacts on the left side of the screen and all video files have the artifacts as well (although not as noticeable as the ESPN app).

    Next, when I do certain things on the device, the TV loses the signal. For example, clicking on the down arrow to bring up the list of applications, the screen resolution seems to change (flickers for a second), shows the applications with terrible red artifacts everywhere, and then the TV loses the signal. Also, If I go to Settings->Change PC settings the screen does the same thing. It flickers for a second, you can see the settings screen for 1-2 seconds, then loses signal. When I hit the windows key on the keyboard, the screen comes back on to the default landing screen. Hitting ctrl+alt+del to bring up task manager will also force the TV to lose signal.

    Also, occasionally I will just be letting it sit on the home screen and it will continuously lose and regain the signal without me doing anything whatsoever. The only thing I have plugged into the device is a Logitech receiver for a Logitech K400 keyboard/mouse.

    Does this sound like a cable issue or a hardware issue? If hardware, does anyone know if MS will warranty this while I am out of the country? I'm on assignment in China for the next 6 months so returning to BestBuy or MS could be an issue for me. If it's a cable, I can probably pick up the official MS adapter here in China somewhere.

    I've seen the artifact thing before on my Raspberry Pi and was able to fix it by amplifying the strength of the HDMI output of the device. I'm not sure I can do that on the SP2.

    Any ideas?

    IMAG0019.jpg IMAG0018.jpg

  2. the_new_normal

    the_new_normal Member

    Joined:
    Dec 11, 2013
    Messages:
    135
    Likes Received:
    11
    Trophy Points:
    18
    Location:
    Australia
    One thing worth trying is setting desktop scaling to 100%. Shouldn't change start screen stuff, but worth a shot.

    Does it behave the same with the keyboard/mouse unplugged?

    See what others have to say first, but a long shot might be to install graphics drivers from Intel.

    Three 'hail Mary pass' option there :) but that's all I can think of (besides a new adapter)

  3. Omni

    Omni Active Member

    Joined:
    Oct 27, 2012
    Messages:
    387
    Likes Received:
    35
    Trophy Points:
    28
    Location:
    UK
    My Device:
    SPro4
    I would certainly try another cable and adapter before returning the Surface. Try just mirroring instead of having the screen only on the TV. If the problem persist on just the TV and not the surface I would say theres a strong chance its the cable.

  4. Knuck

    Knuck Member

    Joined:
    Jan 1, 2014
    Messages:
    118
    Likes Received:
    16
    Trophy Points:
    18
    I would try a new cable. I had a different issue but swapped out the cable and all was good.

  5. spinez

    spinez New Member

    Joined:
    Jan 1, 2014
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    0
    Any suggestions as to which brand of cable to buy? If I can't find the MS version here, I'd like to buy one that has a good reputation. I could easily buy one of the Apple mini DP->HDMI... would that work or is there something in the hardware that makes it only work on Apple products?

    Last edited: Jan 1, 2014
  6. DanL

    DanL Member

    Joined:
    Dec 28, 2013
    Messages:
    125
    Likes Received:
    11
    Trophy Points:
    18
    My Device:
    SPro3
    I have noticed other posts regarding cable issues and some of them were problems with aftermarket cables. I noticed MS makes a different adapter for the Surface, and another
    for the Surface Pro so maybe there is a difference. The SP2 adapter is pretty easy to find now. It might be worth a shot.

  7. Nuspieds

    Nuspieds Active Member

    Joined:
    Feb 24, 2013
    Messages:
    774
    Likes Received:
    120
    Trophy Points:
    43
    Location:
    Los Angeles
    My Device:
    Surface Book
    You definitely should try another cable.

    I bought this from Amazon and I use it regularly on the road and have never had any problems.

  8. MickeyLittle

    MickeyLittle Active Member

    Joined:
    Jun 18, 2012
    Messages:
    454
    Likes Received:
    51
    Trophy Points:
    28
    Location:
    Mississippi
    My Device:
    SPro3
    I used the following instructions to rid myself of the screen flicker issue and who knows since it is a graphic driver it may fix your issue as well...


    "You need to download the Win64_15338.zip from this link, not the .exe file.
    https://downloadcenter.intel.com/Det...09
    Once you've got that and its extracted you need to go into the device manager and right click on the graphics device found under "Display Adapters". Click "Update Driver Software" > "Browse my computer for driver software" > "Let me pick from a list" > "Have Disc.."
    Now you need to click "Browse" and point it to a file named "igdlh64.inf" which is found inside the folder you extracted earlier under the sub folder "Graphics".
    Once that's done hit next and let it install and the driver is installed!"

  9. spinez

    spinez New Member

    Joined:
    Jan 1, 2014
    Messages:
    4
    Likes Received:
    1
    Trophy Points:
    0
    MickeyLittle, that link doesn't work! I actually went to the Intel site and downloaded the 4400 driver I believe. It definitely made things worse for me.

    However, I decided to do a complete reinstall using the recovery options in the settings and it's made quite a difference. I still have artifacts in the ESPN app and elsewhere, but things are a LOT better.

    I can now open the "all applications" without flickering and artifacts. I can now open PC settings without flickering and the screen going blank. I'm still going to buy a new cable in the next few days, but things are starting to look up.
