Some more undervolting results!

Discussion in 'Microsoft Surface Pro 3' started by r34p3rex, Jan 22, 2015.

  1. r34p3rex

    r34p3rex New Member

    Joined:
    Jan 20, 2015
    Messages:
    11
    Likes Received:
    5
    Trophy Points:
    3
    Wierdninja likes this.
  2. kundas1

    kundas1 Super Moderator Staff Member

    Joined:
    Dec 4, 2013
    Messages:
    1,653
    Likes Received:
    299
    Trophy Points:
    83
    My Device:
    SPro3
    yes but how stable is your SP3? I'm sure it must be crashing...

  3. r34p3rex

    r34p3rex New Member

    Joined:
    Jan 20, 2015
    Messages:
    11
    Likes Received:
    5
    Trophy Points:
    3
    GPU is 1 hour stress test stable now. CPU stress test is still running.. 45 minutes without crash so far

  4. ptrkhh

    ptrkhh Active Member

    Joined:
    Nov 15, 2014
    Messages:
    394
    Likes Received:
    77
    Trophy Points:
    28
    How about Connected Standby

  5. Daniel Weck

    Daniel Weck New Member

    Joined:
    Jan 22, 2015
    Messages:
    24
    Likes Received:
    1
    Trophy Points:
    3
  6. GreyFox7

    GreyFox7 Super Moderator Staff Member

    Joined:
    Jul 27, 2014
    Messages:
    6,331
    Likes Received:
    1,279
    Trophy Points:
    113
    Yes, I believe that was the acid test.
    If you expand the report you see this graph

    which shows your system in the cluster of 80 at the upper end of these Similar systems. That's relatively good by comparison with similar systems.

    The other graph places your system (2855) between typical ultralight (2437) an and gaming laptop (9595). IDK what the better than 6% relates to, it seems to be a relative measure but relative to what is not known. Given that I get various values from the same machine without more information its useless so I ignore this flag as it has no meaning to me.

    Back to the bar graph above. forget about the upper and lower bars just focus on the three main bars. From this we know your result was arrived at using external cooling. That may mean the others also used some form of tweaking, or perhaps ran in optimal environmental conditions, or just have a naturally optimal performing system. No two systems run identically there are always variances. If you tap/click the bars it will open that data set and you can see what other systems were in that group, their individual scores and a button for system details.

    There's a compare function but last time I tried it wasn't working and just showed/compared two copies of the same system. {Snicker}

    Last edited: Jan 23, 2015
  7. Daniel Weck

    Daniel Weck New Member

    Joined:
    Jan 22, 2015
    Messages:
    24
    Likes Received:
    1
    Trophy Points:
    3
    Thank you for the clarifications :)

  8. Daniel Weck

    Daniel Weck New Member

    Joined:
    Jan 22, 2015
    Messages:
    24
    Likes Received:
    1
    Trophy Points:
    3
    2892 :)
    http://www.3dmark.com/3dm/5630235
    (external fan blowing from top to bottom, split airflow running along both the back and the glass display, pushing cool air into the top inlet vent as well)

  9. Haldi

    Haldi Member

    Joined:
    Nov 27, 2014
    Messages:
    199
    Likes Received:
    15
    Trophy Points:
    18
    My Device:
    SPro3
    i5-8gb-256gb
    Managed Stable
    -55mV CPU
    -130mV Cache
    -80mV GPU

    But sadly it crashes when entering standby

  10. GreyFox7

    GreyFox7 Super Moderator Staff Member

    Joined:
    Jul 27, 2014
    Messages:
    6,331
    Likes Received:
    1,279
    Trophy Points:
    113
    A common result, from that I conclude standby does undervolting which results in too much undervolting.

  11. ChiGGz

    ChiGGz Member

    Joined:
    Dec 4, 2014
    Messages:
    71
    Likes Received:
    5
    Trophy Points:
    8
    Location:
    Toronto
    So undervolting improved benchmark results due to less throttling? Very interesting.

    But it seems you're better off leaving voltage as-is and using an external fan for cooling.
    Score 2963 - http://www.3dmark.com/sd/2780217

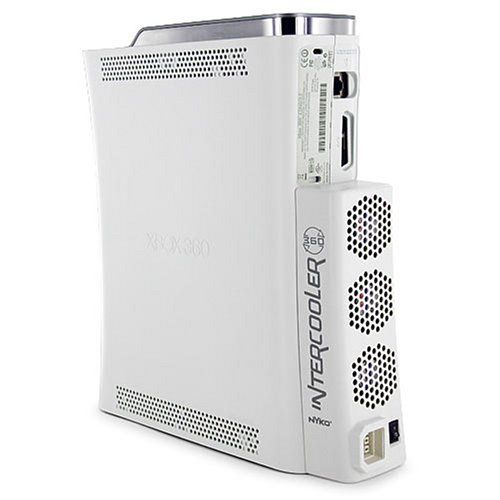

    My cooling is made from jerry rigged XBOX 360 cooler. This thing is a beast!
    [​IMG]
    First fan on the left pulls air out. Two other fans on the right push air in. I have the SP3 angled a for direct air flow.

    WP_20150206_002.jpg WP_20150206_004.jpg

    Last edited: Feb 6, 2015
  12. mtalinm

    mtalinm Active Member

    Joined:
    Feb 14, 2013
    Messages:
    602
    Likes Received:
    85
    Trophy Points:
    28
    epic!
