Touchscreen Calibration problem?

Discussion in 'Microsoft Surface Pro 3' started by bulls96, Aug 18, 2014.

  1. steve99

    steve99 New Member

    Joined:
    Sep 11, 2014
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1

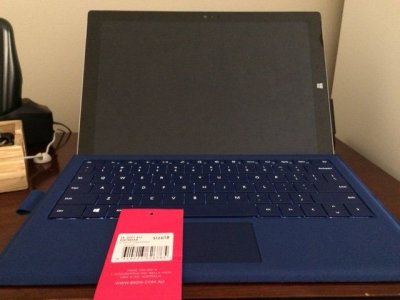

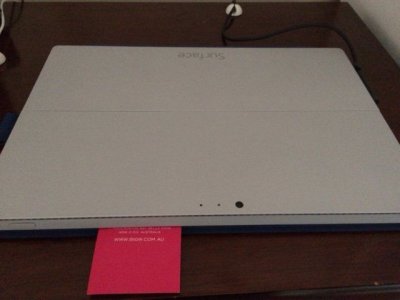

    Update: I think the trackpad in contact with the touch screen while charging is causing it for me. Here is a fix that works for me: a piece of cardboard to cover the trackpad.


    Attached Files:

  2. BMoreawesome

    BMoreawesome New Member

    Joined:
    Oct 27, 2014
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    1
    Location:
    On the Surface
    My Device:
    SPro3
    Sorry for necroing this but I just had the same issue and had to return. MI always charge with the type cover on. I won't be with the new one. Any more info on this issue though?

  3. steve99

    steve99 New Member

    Joined:
    Sep 11, 2014
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    Hi thanks for your reply. No update from me, I just got used to it. I reboot whenever it happens. I'm interested to see if your replacement still has the issue though. I wonder how many people have this issue and don't realise what causes it?

  4. herpderp

    herpderp New Member

    Joined:
    Nov 1, 2014
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    1
    I had exactly the same problem. Microsoft sent me a replacement, but the new unit had exactly the same issue at the same spot. I can reproduce it by turning the SP3 on with the Type Cover closed, wait a few seconds, open it and start drawing in FreshPaint (last step is only for visualisation).

    However, I was in contact with the Microsoft Support today and they will send me a new Type Cover. Let's hope this fixes my problem!

  5. Haldi

    Haldi Member

    Joined:
    Nov 27, 2014
    Messages:
    201
    Likes Received:
    15
    Trophy Points:
    18
    My Device:
    SPro3
    Ohhhhhhhhhh
    That totally hits the mark!



    I've put my Surface up side down (Keyboard on the table) closed and charged it over night!
    And now i have this Problem with the unresponding Touch screen! Pen still works fine. And it's gone after a reboot.

    So does changing the Keyboard help with this Problem?

    P.S this video mentioned earlier is awesome!

  6. ctitanic

    ctitanic Well-Known Member

    Joined:
    Nov 3, 2012
    Messages:
    2,194
    Likes Received:
    577
    Trophy Points:
    113
    Location:
    Hollywood, FL
    My Device:
    SPro3
    Raggarkungen likes this.
  7. nikolaus

    nikolaus New Member

    Joined:
    Feb 17, 2015
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    That firmware update from N-Trig works perfectly. The instructions are somewhat odd, though. They mean:
    Download
    Extract to your home directory (or anywhere else)
    Click on CalibG4.exe
    Wait for it to finish without touching the screen
    Done.

  8. bmazloum

    bmazloum New Member

    Joined:
    May 17, 2015
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    1
    My Device:
    SPro3
    This just happened to me, bought a SP3 from eBay and the owner swore that he has no problems and he rarely used it (it's in immaculate condition as far as looks go). This link just saved me! That file is def. going on my backup drive.

  9. seantb

    seantb New Member

    Joined:
    Mar 23, 2016
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    My Device:
    Surface 3 (Atom)
    i have a surface 3 (not pro) and have this exact issue, i thought it could be related to the type cover... this pretty much confirms my thoughts and ill do the same tests as other have done above.
    i have already exchanged the device twice and the girl at the MS store probably thinks im nuts now. i even asked if the cover could be the problem and she gave me a very strong, "no its not possible."
    The link above doesn't seem to work for the surface 3, does anyone have this fix for my model?

    not sure how MS could not have fixed this issue by now.

  10. d1stort1on

    d1stort1on New Member

    Joined:
    Mar 24, 2016
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    My Device:
    SPro3
    I wonder if this is related to my problem - the touch screen works great for me until I install Adobe Creative Cloud and then it gets terrible. Taps registering in the wrong spot, swipes not working, etc.. I haven't seen anybody else post about it being cause by Creative Cloud though except me. If I uninstall the Adobe Apps and Creative Cloud the touch problems go away.

  11. Richard Blaine

    Richard Blaine New Member

    Joined:
    Jun 29, 2015
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    1
    My Device:
    SPro3
    Yes, this! (although I think you meant calibration, CT...) I posted this fix a while back on this forum in another thread. Worked perfectly for me (SP3, i7, 250 GB, Win10) for this problem. Try it before returning, resetting, etc.

  12. Peter Steier

    Peter Steier New Member

    Joined:
    Jun 6, 2017
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    1
    My Device:
    SPro3
    I had the same problem just now with my surface pro 3. CalibG4.exe helped (so far). Almost queued up for a new surface pro... maybe I will do that anyways, if I read positive reports here.
