Different kickstand design

Discussion in 'Microsoft Surface Pro 2' started by Tsurugaya, Jan 25, 2014.

  1. Tsurugaya

    Tsurugaya Active Member

    Joined:
    Jan 23, 2014
    Messages:
    395
    Likes Received:
    28
    Trophy Points:
    28
    I would like to see a different design of the kickstand. The left and right edge should be angled at different degrees, say 15 and 30, so it would support the Surface in portrait mode at t two different angles the way it does in landscape.

  2. Harvey

    Harvey New Member

    Joined:
    Dec 28, 2013
    Messages:
    15
    Likes Received:
    4
    Trophy Points:
    3
    I'll get right on it.

  3. Tsurugaya

    Tsurugaya Active Member

    Joined:
    Jan 23, 2014
    Messages:
    395
    Likes Received:
    28
    Trophy Points:
    28
    Hey, a girl can dream can't she? :(:D

  4. manonthebrain

    manonthebrain New Member

    Joined:
    Jan 19, 2014
    Messages:
    34
    Likes Received:
    3
    Trophy Points:
    0
    Location:
    Canada
    wouldn't that mod make it a little harder to use in your lap.
    there is a Sony product that was supposed to be a surface competitor but the drawback was the stand was directly in the middle and about an inch wide, making it impossible to use on anything other than a table top.

  5. surfdock

    surfdock Active Member

    Joined:
    Jan 21, 2014
    Messages:
    199
    Likes Received:
    47
    Trophy Points:
    28
    Location:
    Seattle, WA
    My Device:
    SPro3
    Hi. I almost took a dremmel tool to my flipstand to get it to be more stable in portrait mode. But then I had a better idea. I made a portrait docking station for about $6. What do you think?

    Surface Pro/Pro 2 Portrait Docking Station
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Jan 25, 2014
    1 person likes this.
  6. the_new_normal

    the_new_normal Member

    Joined:
    Dec 11, 2013
    Messages:
    135
    Likes Received:
    11
    Trophy Points:
    18
    Location:
    Australia
    Brilliant

  7. Tsurugaya

    Tsurugaya Active Member

    Joined:
    Jan 23, 2014
    Messages:
    395
    Likes Received:
    28
    Trophy Points:
    28
    I agree, very clever solution. Wish it was portable.

  8. Tsurugaya

    Tsurugaya Active Member

    Joined:
    Jan 23, 2014
    Messages:
    395
    Likes Received:
    28
    Trophy Points:
    28
    The kickstand have the width of the Surface today, I visualize it as being a total of 1 to 1/2 inch smaller. Do you think that would make it harder to be stable in your lap?

  9. jrapdx

    jrapdx Member

    Joined:
    Jan 14, 2014
    Messages:
    259
    Likes Received:
    21
    Trophy Points:
    18
    Location:
    Oregon
    Probably not. Part of the (vertical) stand stability problem may be the angle it emerges from the body (when the stand extended of course). At the maximum angle it still isn't perpendicular.

    My issue with the kick stand is a little different but may coincide with yours. I think it does not quite reach an angle that allows a bit more "tilted back" position (in horizontal orientation). In some locations the "more tilted back" angle would be more comfortable (at least for us taller folks). At the same time, this would make a more balanced vertical stance for the SP2.

    BTW, the idea of "shaving" off a bit of the length of the kickstand might work even better if the elided area was an angle from the full-width edge where the stand hinges on the body, to a cm or so less width at the distal end of the stand. Forms a sort of rhomboidal shape, the wide edge at the hinge. Hope that makes some sense. A drawing would be much clearer...

  10. Tsurugaya

    Tsurugaya Active Member

    Joined:
    Jan 23, 2014
    Messages:
    395
    Likes Received:
    28
    Trophy Points:
    28

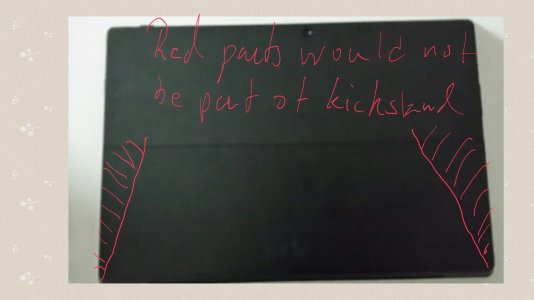

    Visualization

    This is how I imagine the design.
    And as I view it now after uploading it I realize that the angles should be mirrored. Shouldn't do these things after bedtime. I hope my idea still comes over. The angle starts at the edge where the kickstand is joined in the middle of the backside. I'll make a new one tomorrow when I'm not tired.
    I edited the photo on my phone, this is why I also need a Surface, sometimes those screens are just too small for what you want to do.

    Surface kickstand design.jpg

    Last edited: Jan 26, 2014
  11. manonthebrain

    manonthebrain New Member

    Joined:
    Jan 19, 2014
    Messages:
    34
    Likes Received:
    3
    Trophy Points:
    0
    Location:
    Canada

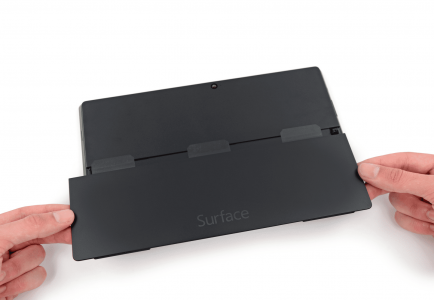

    with that design you'd have to mod the slots for the stand and the stand it self
    surface stand.png
    AND how would that help portrait mode anyways?? the angles should be the opposite direction

    Last edited: Jan 26, 2014
  12. godson594

    godson594 Active Member

    Joined:
    Apr 5, 2013
    Messages:
    266
    Likes Received:
    33
    Trophy Points:
    28
    Location:
    Silicon Valley
