3d print fan box - prevent throttling

Discussion in 'Microsoft Surface Pro 3' started by M2RiverRat, Sep 4, 2015.

  1. M2RiverRat

    M2RiverRat New Member

    Joined:
    Sep 1, 2015
    Messages:
    10
    Likes Received:
    2
    Trophy Points:
    3
    My Device:
    SPro3
    To begin this is the only issue that I have come across with the surface.

    So, first thing is research!!



    Here is a quick video from one of the lead designers explaining how the fan works.

    My intent is to provide the files for those who have their own 3d printers.

    I will update this 1st post when I progress more into this project.

    Little update:
    These are the parts that I have purchased and will be working with.
    1. 4 pin connector
    http://www.digikey.com/product-detail/en/10114829-10104LF/609-4385-1-ND/2658918

    2. Internal laptop fan.
    Amazon.com: Eathtek New CPU Cooling Fan For DELL LATITUDE E6400 FX128: Computers & Accessories

    3. USB to 4 pin connector
    http://www.amazon.com/gp/product/B000IV6S9S?psc=1&redirect=true&ref_=oh_aui_detailpage_o00_s01

    4. USB port hub
    Amazon.com: Sabrent 4-Port USB 2.0 Hub with Individual Power Switches and LEDs (HB-UMLS): Computers & Accessories

    I have started a model but not finished yet.

    River

    15-Sep-15

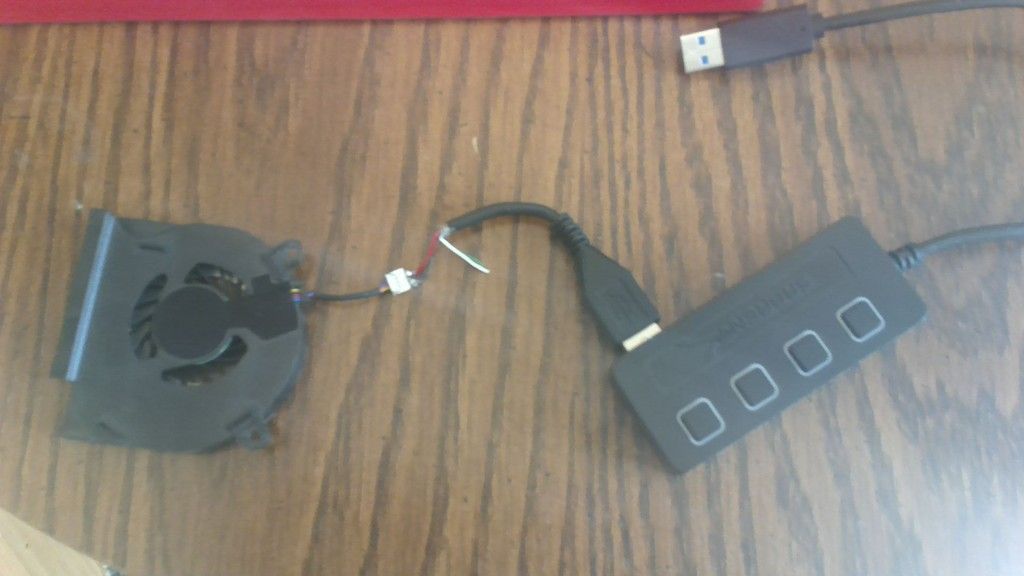

    little update I soldered the red and black wires together for the connector and the usb. my current cable is a little short for how i want to arrange things, so I am going to go get a little extension.

    [​IMG]

    Made a model that may work need to find time to print it. Test weeks have come up so I have been a little busy.

    4-Oct-15
    Okay! Well I printed it it turned out great. Everything fits tight, you have to be careful pulling the support material out or you might crack a wall, like i did, but nothing a little hot glue wont fix. I found that a screwdriver and a dental pick work pretty good at pulling the support material out. Overall it wasn't that bad to deal with.

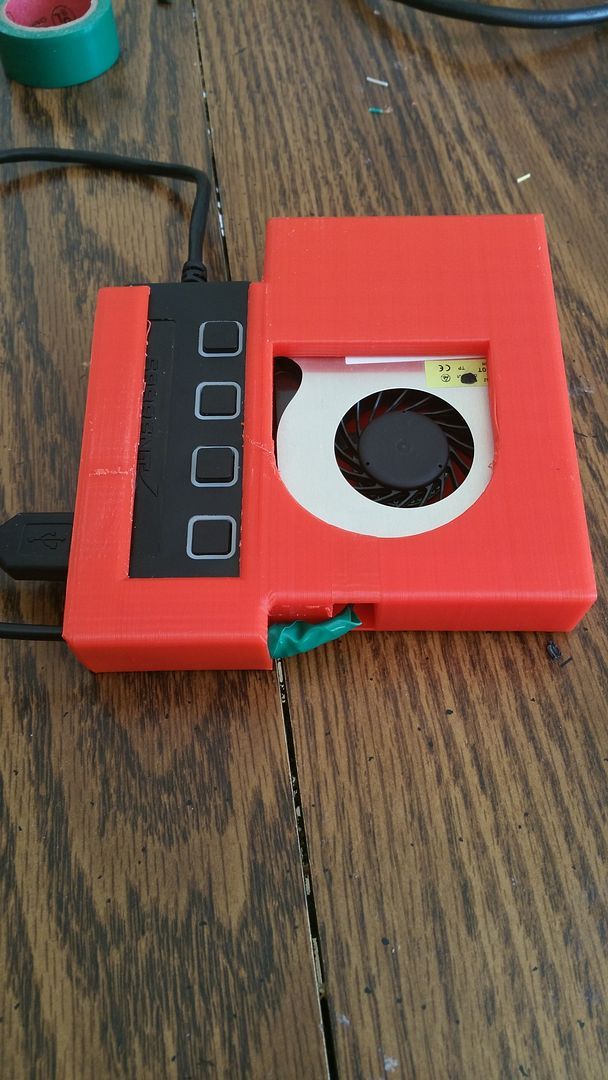

    assembled [​IMG]

    I printed a little cover to put over the fan hole the tabs didn't fit right so i just cut the pins off and hot glued it on.
    [​IMG]

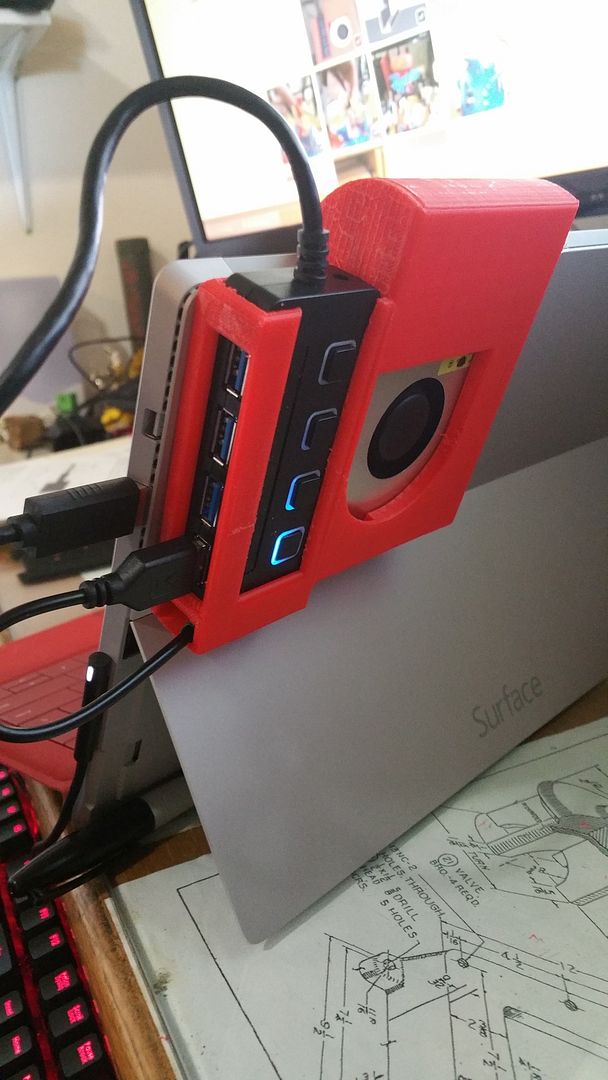

    On the surface

    I will upload the files in a bit!

    Here is my disclaimer.

    I will not take responsibility for you breaking your own stuff. Something happens because you used this.. (not saying it will) then it is your own fault.

    As promised:
    STL file:
    Dropbox - fan cover.STL
    Solidworks file:
    Dropbox - FAN DUCT.SLDPRT
    fan cover stl
    Dropbox - FAN DUCT.STL
    Fan duct without usb
    Dropbox - FAN DUCT without usb.STL

    Last edited: Dec 11, 2015
  2. ptrkhh

    ptrkhh Active Member

    Joined:
    Nov 15, 2014
    Messages:
    394
    Likes Received:
    77
    Trophy Points:
    28
    The last 10 seconds of the video caught my attention:

    - The metal bar on the kickstand doesn't have the two feet (similar to the Surface 3)
    - The device is bent.

  3. Haldi

    Haldi Member

    Joined:
    Nov 27, 2014
    Messages:
    199
    Likes Received:
    15
    Trophy Points:
    18
    My Device:
    SPro3
    Looking forward to this.
    I have about 5 different Fans and a 5v->12V step up adapter ready.

  4. M2RiverRat

    M2RiverRat New Member

    Joined:
    Sep 1, 2015
    Messages:
    10
    Likes Received:
    2
    Trophy Points:
    3
    My Device:
    SPro3

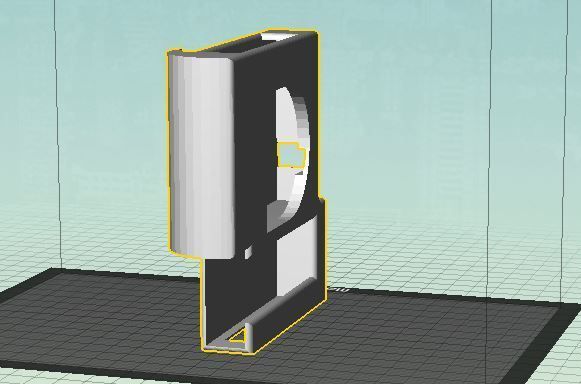

    [​IMG]

    1st attempt at printing this design, may change depending on this print. The orientation uses the least amount of support.

  5. M2RiverRat

    M2RiverRat New Member

    Joined:
    Sep 1, 2015
    Messages:
    10
    Likes Received:
    2
    Trophy Points:
    3
    My Device:
    SPro3

    The support material was not hard to deal with at all. I under estimated the shrinkage, so I will be editing this and reprinting.

    Cheers!

  6. M2RiverRat

    M2RiverRat New Member

    Joined:
    Sep 1, 2015
    Messages:
    10
    Likes Received:
    2
    Trophy Points:
    3
    My Device:
    SPro3
    This has nothing to do with the subject..

  7. JoshB

    JoshB Member

    Joined:
    Sep 2, 2014
    Messages:
    79
    Likes Received:
    22
    Trophy Points:
    8
    My Device:
    SPro3
  8. M2RiverRat

    M2RiverRat New Member

    Joined:
    Sep 1, 2015
    Messages:
    10
    Likes Received:
    2
    Trophy Points:
    3
    My Device:
    SPro3

    Ya i didn't like his design so i made my own, mine uses an internal laptop fan and the duct on top changes the air flow direction, so the surface sucks the air in from the top. This is why I did the research.. in the first post.

  9. fractalawareness

    fractalawareness New Member

    Joined:
    Dec 11, 2015
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    1
    My Device:
    SPro3
  10. M2RiverRat

    M2RiverRat New Member

    Joined:
    Sep 1, 2015
    Messages:
    10
    Likes Received:
    2
    Trophy Points:
    3
    My Device:
    SPro3
    uploaded a file without the usb on it

    fractalawareness likes this.
